• • Bullet

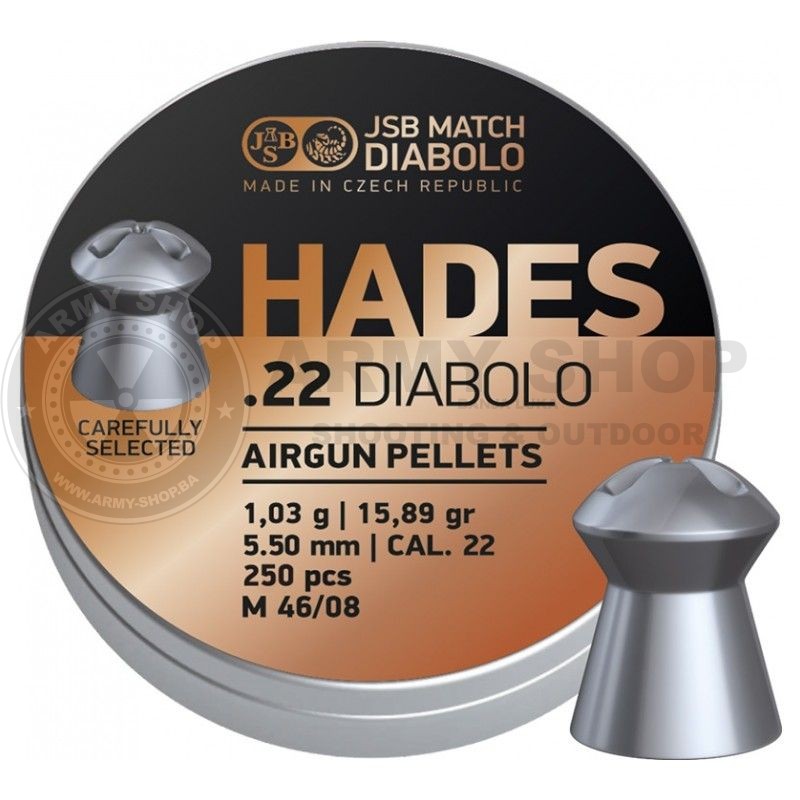

  • 22 Diabolo JSB(58) Hades .22
  • Catalogue ID Ballistica X©: 3400
  • Manufacturer's catalog. ID: 546290
  • Ballistic coefficient
  • 0.023 lb/in2 G1 ICAO
  • lb/in2 G7 ICAO
  • Muzzle velocity: 250 m/s
  • Mass
  • 1.03 g | 15.8953 grs
  • Bullet diameter
  • 5.5 mm | 0.217 in
  • Bullet length
  • |
  • SD: 0.048 lb/in2
  • Form factor
  • 2.087 i1 | undefined i7
• Atmosphere
• Standard ICAO
• Absolute pressure: 1013.25 hPa
• Temperature: 15 °C
• Wind: 0 m/s
• Humidity: 0 %
• Sound velocity: 340.3 m/s
• Air density: 1.22543 kg/m3

Trajectory

Zero range: 25 m

MRD/GEE (+4 cm): 47.57 m

Elevation: 0 °

Scope

Zero range: 25 m

MRD/GEE (+4 cm): 47.57 m

Elevation: 0 °

Distance (m)	Velocity (m/s)	Energy (J)	Drop (cm)	Trajectory (cm)	Trajectory at MRD (cm)	Trajectory (click)	Wind (cm)	Wind (click)	Time (s)
0	250	32	0	-5	-5	0	0	0	0
25	213	23	-5.5	0	3.7	0	0	0	0.108643
50	183	17	-24.5	-8.6	-1.2	17	0	0	0.235505
75	157.3	13	-62	-35.7	-24.5	48	0	0	0.38305
100	134.8	9	-124.5	-87.7	-72.9	88	0	0	0.555022
